Uninterruptible Power Supplies (UPS)
An uninterrupted electricity supply for sensitive activities
ACTIVE POWER installer in Belgium, Eneria can offer a unique catalogue of dynamic UPS (Uninterruptible Power Supply).
Fluctuations and failures of the power supply, from simple voltage dips to total power cuts, can have disastrous consequences on the products or services of your activity. Thanks to our UPS offer, Eneria can guarantee an uninterruptible power supply for data center, in the field of healthcare, banking and insurance, telecommunications, industry or events. We offer integrated and customised systems that meet your electricity needs, thanks in particular to gensets equipped with Uninterruptible Power Supplies (UPS).
Ourdynamic high-performance UPS systems meet the demand for a continuous, stable and high-quality power supply, capable of correcting all your power supply failures immediately.
UPS: Eneria’s experts can help you to secure the electric power supply of your installation
From the project design phase, to the start-up of your installation, we offer a complete range of made-to-measure services:
Consulting and Engineering
analysis of the constraints and feasibility, development of the concept, project management, finalisation of a financing plan, engineering services
Installation
of your UPS on site, start-up, user training
Maintenance
preventive and curative: emergency interventions, 24/7 on-call service
Dynamic UPS: dynamic Uninterruptible Power Supplies
The Active Power dynamic UPS come in the form of a compact unit that can easily be installed in the vicinity of your sensitive equipment.
Find out more about our product range

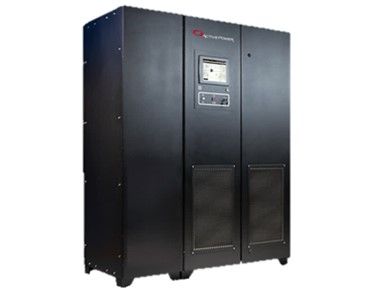

Active Power SMS (Single Module System) UPS – 333 kVA
CS+ 300 SMS 333kVA-300kW
- Energy storage through kinetic flywheel
- Battery-free single module system (space requirements reduced by 1.4 m²/333 kVA)
- No air conditioning required for installation (temperature range from 0 to 40 °C)
- I/O voltage 400 V
- Yield 98%
- Cos φ = 0.9 (333 kVA-300 kW)
- Analogue, SNMP and Modbus communication interfaces
- Parallelable x 8
- Eliminates all micro-power cuts
- Charging power during genset start-up
- Eliminates all power over- or under-loads
- Filters upstream and downstream harmonics
- Regulates voltage
- Power factor regulator (Cosø)
- Progressive load transfer
- 2nd power source for genset starter

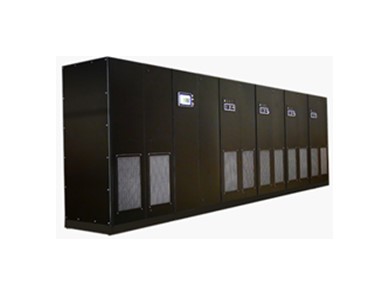

Active Power MMS inverter (Multi Module System) – 333 – 2666 kVA
CS+ 300 MMS Series 333kVA-300kW/1333kVA-1200kW
- Models available CS+300(333kVA/300kW), CS+300 N+1(333kVA/300kW), CS+600(666kVA/600kW), CS+600 N+1(666kVA/600kW), CS+900(1,000kVA/900kW), CS+900 N+1(1,000kVA/900kW), CS+1200(1,332kVA/1,200kW)
- Energy storage through kinetic flywheel
- Mutli-module battery-free system
- No air conditioning required for installation (temperature range from 0 to 40 °C)
- I/O voltage 400 V
- Yield 98%
- Cos φ = 0.9 (e.g. 333 kVA-300 kW)
- Analogue, SNMP and Modbus communication interfaces
- Parallelable with max. 8 flywheels in parallel
- Eliminates all micro-power cuts
- Charging power during genset start-up
- Eliminates all power over- or under-loads
- Filters upstream and downstream harmonics
- Regulates voltage
- Power factor regulator (Cosø)
- Progressive load transfer
- 2nd power source for genset starter

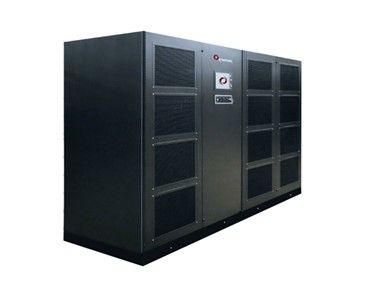

Active Power SMS (Single Module System) UPS – 625 kVA
CSHD SMS Series 625kVA-625kW
- Energy storage through kinetic flywheel
- Battery-free single module system (space requirements reduced by 1.4 m²/333 kVA)
- No air conditioning required for installation (temperature range from 0 to 40 °C)
- I/O voltage 400 V
- Yield 98%
- Cos φ = 0.9 (333 kVA-300 kW)
- Analogue, SNMP and Modbus communication interfaces
- Parallelable x 8
- Eliminates all micro-power cuts
- Charging power during genset start-up
- Eliminates all power over- or under-loads
- Filters upstream and downstream harmonics
- Regulates voltage.
- Power factor regulator (Cosø)
- Progressive load transfer.
- 2nd power source for genset starter
Critical Power Module (CPM)
CS+ 300 MMS Series 333kVA-300kW/1333kVA-1200kW
- Range: 333-666-1,000-1,332 kVA
- ISO container 20 feet (333 kVA) or 40 feet (660-1332 kVA) fitted as standard with:
- A dynamic UPS
- A CATERPILLAR genset
- Plug-and-play solution that meets the growing demand for modularity and flexibility
- The combination of a dynamic UPS and a genset provides optimal “time zero” type protection for your electricity supply (no outages)
- The container is adapted in line with the specific acoustic, integration and inverter requirements, etc.
Thanks to its expertise, Eneria is able to adapt the CPM configuration to align with your needs. For more information, please contact us.
How dynamic UPS work
Dynamic UPS are based on the Active Power online parallel architecture, which provides excellent insulation between the input and the output, plus class 1 voltage regulation and the dynamic elimination of the effects of non-linear load harmonics. This topology permanently protects the online power supply in your data centre, by creating a specific sinusoidal outlet wave form and by protecting critical loads against the nine forms of interference with power supplies defined by the IEEE, in a high-power, reliable and energy-efficient unit.

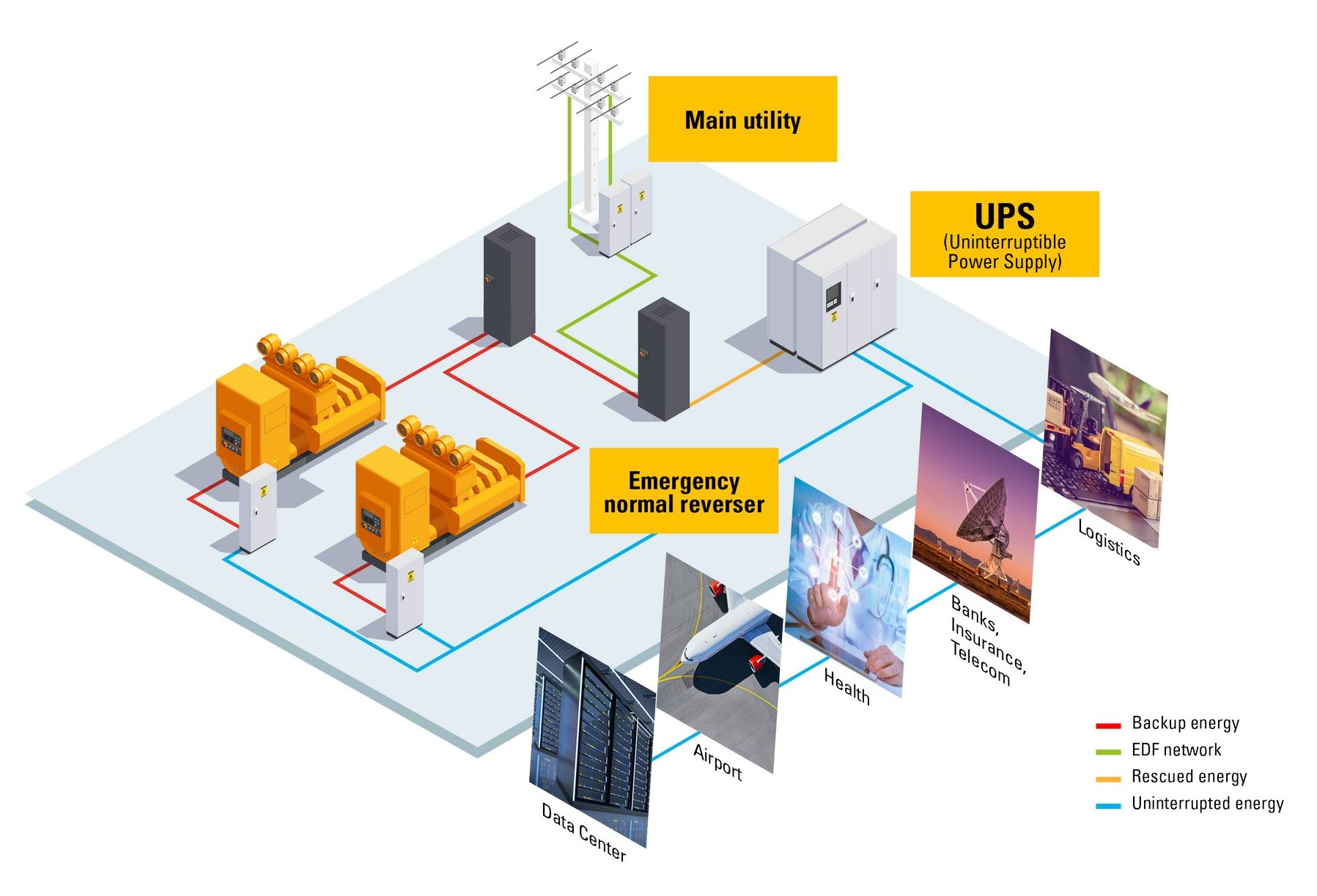

Dynamic UPS are usually coupled to a genset. The combination of a dynamic UPS and a genset provides optimal “time zero” type protection for your electricity supply.

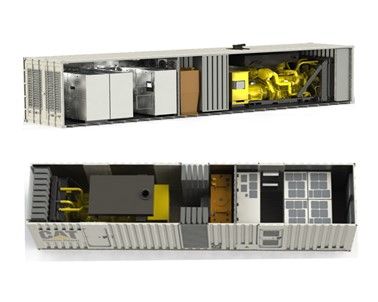

Critical Power Modules (CPM)
Eneria also offers the Critical Power Module (CPM) to optimise your projects. Developed as a solution in a standard ISO container, the CPM is a highly efficient module that can deliver an uninterruptible power supply to critical consumers, from 333 kVA to 1,333 kVA per module.
It consists of a CATERPILLAR genset and an ACTIVE POWER dynamic UPS, housed in a standard 20 or 40-foot ISO container adapted to the customer’s needs.
The CPM is a true plug-and-play concept that meets the growing demand for modularity and flexibility.
