400 to 4,500 kWe natural gas gensets
A range of flexible, high-performance natural gas gensets.
Our gas gensets are designed to function with your most abundant sources of gas and feature flexible combustion options adapted to natural gas, biogas, city gas and alternative fuels.
The new engine technologies supply power and heat, or allow for cogeneration for range-topping thermal and electrical efficiency. Several options are available from the factory, including containers, heat recovery modules, control systems and turnkey containerised systems.
Range of natural gas gensets

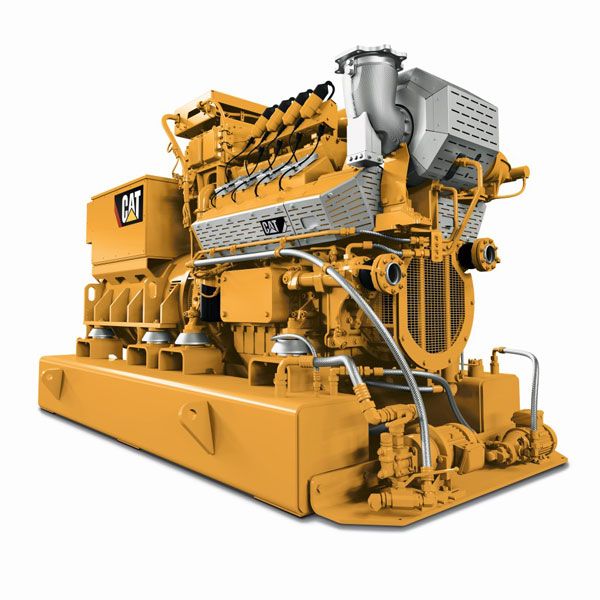

CG132B-08 / 400 kWe
- Electric power : 400 kWe
- Thermal output : 423 kWth
- Gas consumption : 951 kW PCI
- Electrical efficiency : 42,1%
- Overall efficiency : 86,59%

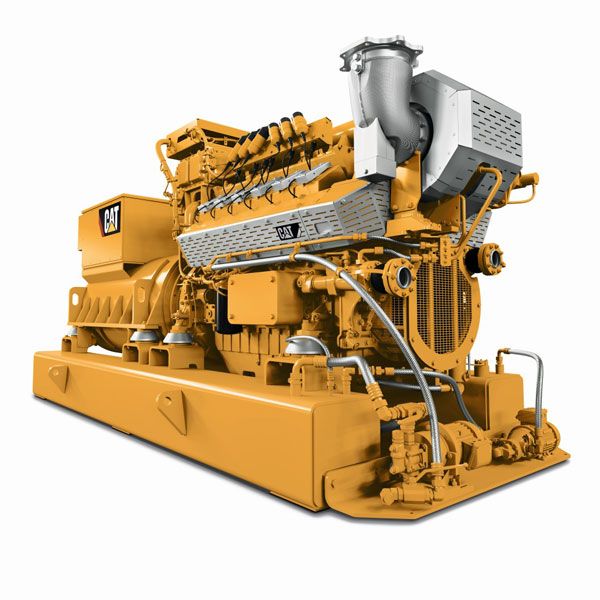

CG132B-12 / 600 kWe
- Electric power : 600 kWe
- Thermal output : 647 kWth
- Gas consumption : 1422 kW PCI
- Electrical efficiency : 42,2%
- Overall efficiency : 87,7%

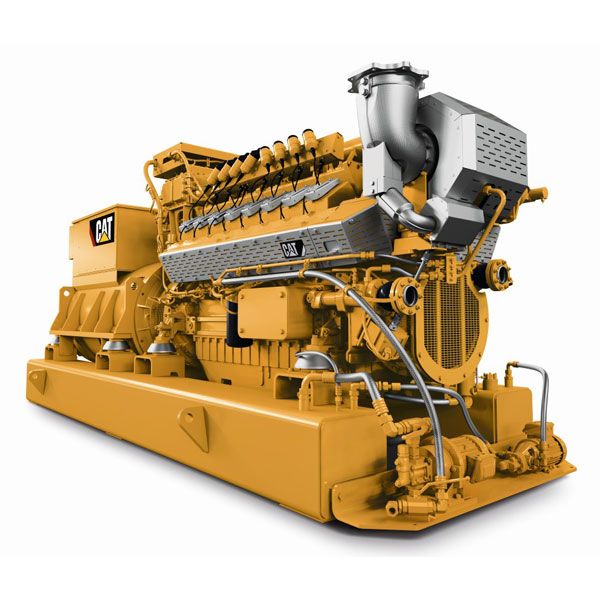

CG132B-16 / 800 kWe
- Electric power : 800 kWe
- Thermal output : 856 kWth
- Gas consumption : 1882 kW PCI
- Electrical efficiency : 42,5%
- Overall efficiency : 88%
CG132B-16 HD / 999 kWe
- Electric power : 999 kWe
- Thermal output : 1084 kWth
- Gas consumption : 2378 kW PCI
- Electrical efficiency : 41,5%
- Overall efficiency : 87,6%

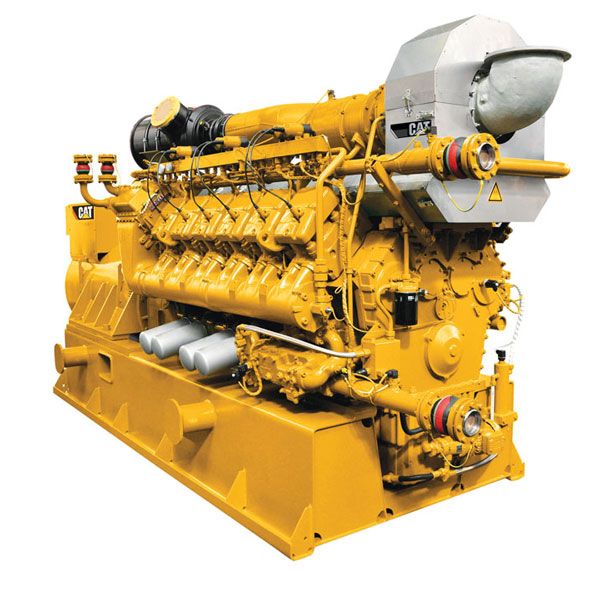

CG170-12 / 1 200 kWe
- Electric power : 1200 kWe
- Thermal output : 1242 kWth
- Gas consumption : 2817 kW PCI
- Electrical efficiency : 43,4%
- Overall efficiency : 86,7%

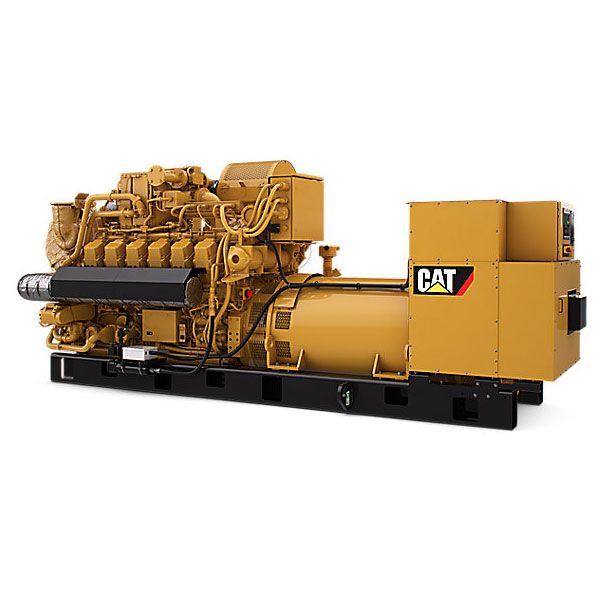

G3512H / 1 500 kWe
- Electric power : 1500 kWél
- Thermal output : 1489 kWth
- Gas consumption : 3454 kW PCI
- Electrical efficiency : 44,9%
- Overall efficiency : 86,5%

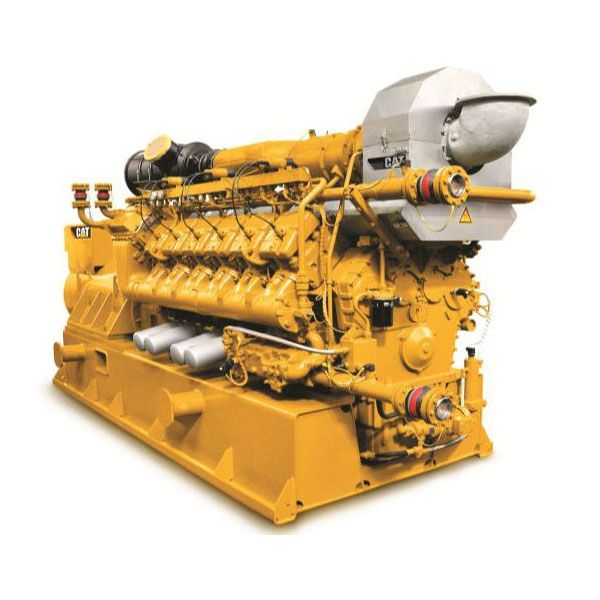

CG170-16 / 1 560 kWe
- Electric power : 1560 kWe
- Thermal output : 1648 kWth
- Gas consumption : 3694 kW PCI
- Electrical efficiency : 43.3%
- Overall efficiency : 86,8%

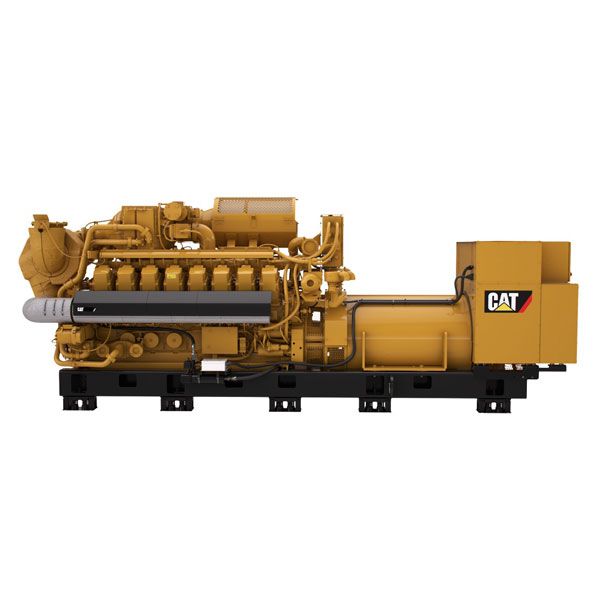

G3516H / 2 027 kWe
- Electric power : 2027 kWél
- Thermal output : 1986 kWth
- Gas consumption : 4662 kW PCI
- Electrical efficiency : 43,5%
- Overall efficiency : 86,1%

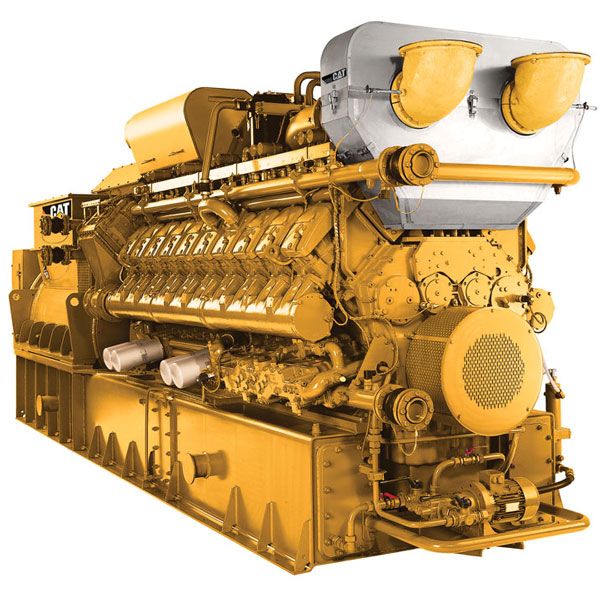

CG170B-20 / 2 300 kWe
- Electric power : 2300 kWe
- Thermal output : 2064 kWth
- Gas consumption : 2164 kW PCI
- Electrical efficiency : 45 %
- Overall efficiency : 87.3 %

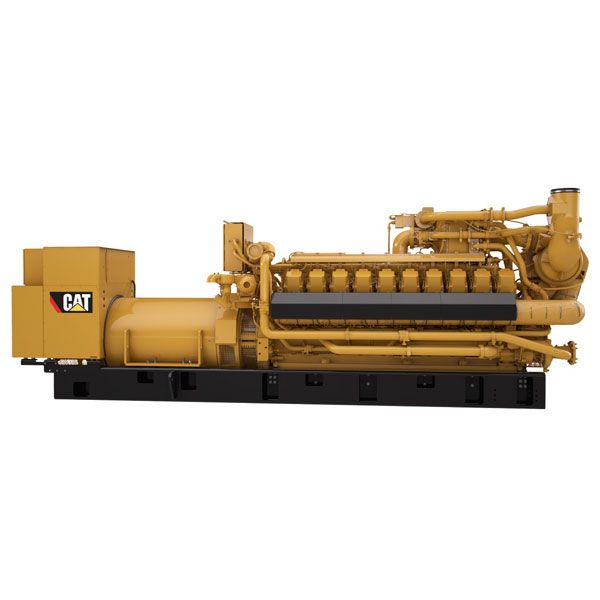

G3520H / 2 519 kWe
- Electric power : 2519 kWe
- Thermal output : 2454 kWth
- Gas consumption : 5843 kW PCI
- Electrical efficiency : 45.3%
- Overall efficiency : 85,1%

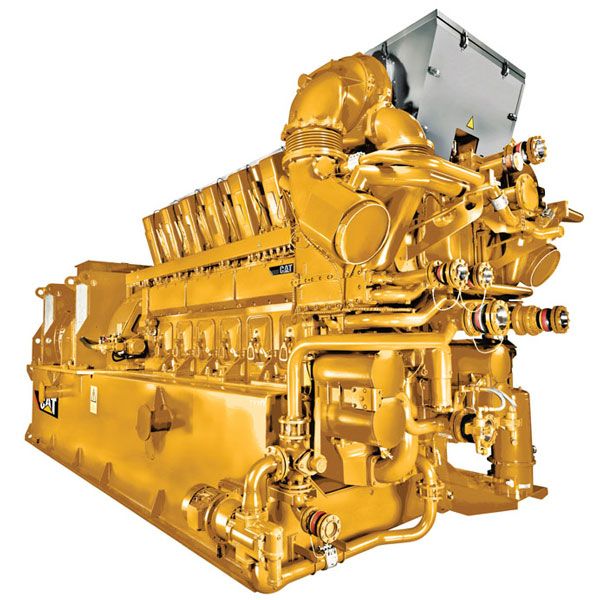

CG260-12 / 3 206 kWe
- Electric power : 3206 kWe
- Thermal output : 3329 kWth
- Gas consumption : 7553 kW PCI
- Electrical efficiency : 43.9%
- Overall efficiency : 86,5%

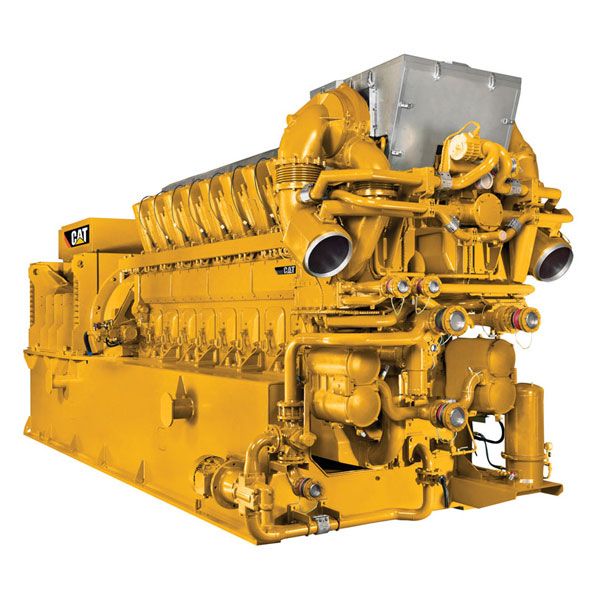

CG260-16 / 4 300 kWe
- Electric power : 4300 kWe
- Thermal output : N/A
- Gas consumption : 9809 kW PCI
- Electrical efficiency : 44.6%
- Overall efficiency : 87.6%
CG260-16 EVO / 4 500 kWe
- Electric power : 4500 kWe
- Thermal output : 4461 kWth
- Gas consumption : 10227 kW PCI
- Electrical efficiency : 44.6%
- Overall efficiency : 87,6%
